Citadel’s Polyurea Floor System Meets the Challenge of this Auto Detailer’s Harsh Environment

2018-04-18

"Neither snow nor rain nor heat nor gloom of night stays these couriers from the swift completion of their appointed rounds" reads the famous motto inscribed on a post office in New York City.

When Brett Buffington—Flooring Specialist described one of Citadel’s latest project scenarios, it was this unofficial US postal worker creed that came to mind. Picture this:

A large, 40,000 square foot (SF) facility is open on either end to the elements, allowing varying degree of temperatures, UV rays and rain to enter the building. After years of exposure and use, the concrete floor is battered and worn. The facility’s waterfront location creates high moisture vapor drive through the floor.

To top it off, this is where high-end imported vehicles are detailed—a process involving various chemicals and automotive fluids— before they’re shipped to the luxury dealerships where they’ll be sold.

It was time to upgrade the facility’s concrete floor. The detailing company had these requirements:

• Resist the chemical products typically used to detail vehicles.
• Resist tire staining.
• Minimize visible concrete damage.
• Improve safety with a light non-slip texture.
• Provide UV stability, so floor coatings don’t fade or yellow over time.

The vehicle manufacturer, who had a vested interest in the quality of detailing work performed, required that the total quantity of visible light (including reflected off the floor) meet a minimum of 1,200 Lumens.

Due to the high-moisture waterfront environment, there was the added requirement of a moisture vapor primer with the capability of withstanding 25 lbs. of moisture vapor per 1,000 SF as measured over a 24-hour period using anhydrous calcium chloride tests. This addition will provide a long term solution to the potential of delamination from the concrete due to the high moisture vapor drive.

Brett’s recommendations for the installation team included:

• Prepare concrete using Krud Kutter to remove contamination. (Areas of the floor were found to be contaminated with silicone; properly cleaning those areas required wiping down with acetone, and changing cleaning rags every 5-10 SF.)
• Using a shot blast machine, profile the surface to a concrete surface profile (CSP) of 3. CSP, a visual standard developed by the International Concrete Repair Institute, measures average distance from to valleys of the surface, ranging from 1 (nearly flat), to 9 (very rough).
• Chase and fill cracks and control joints with Fortification Formula Polyurea.
• Apply one coat of Ultra Hydro-Stop Primer at 100 SF per gallon to control moisture vapor.
• Apply one coat of SLE 100 (100% solids epoxy coating) at 100 SF per gallon as a build coat to help further smooth surface damage and defects.
• Apply one coat of 1HD, a single component, UV-stable, aliphatic polyurea with the best chemical resistance available, with 3 lbs. per gallon of Ultra Durability Plus (UDP) for a light non-slip texture. Tint with Super Light Gray Universal Tint and spread at 400 SF per gallon.

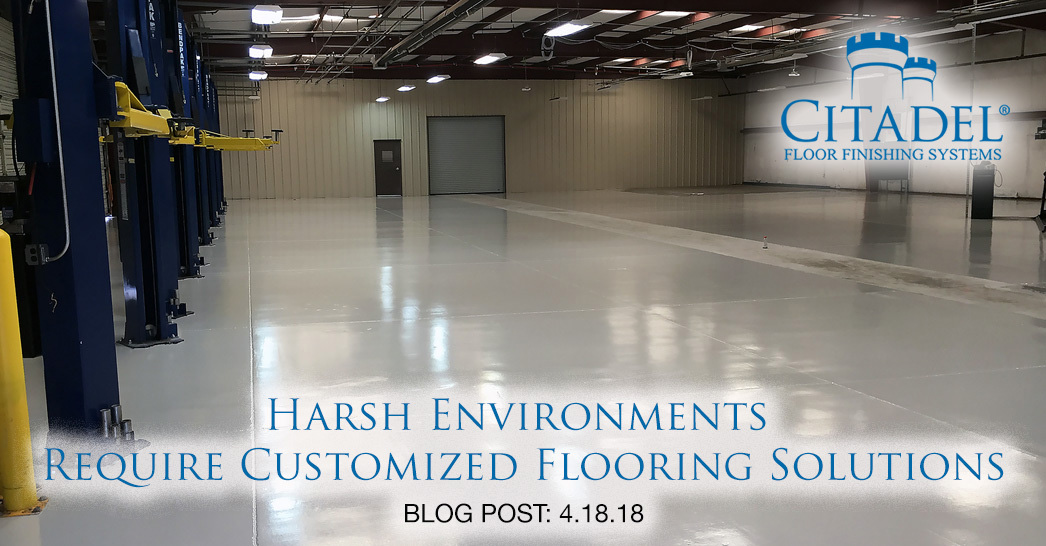

The result was a smooth stable floor system that met all requirements and surpassed the manufacturer’s expectations with a visible light measurement of 3,600 Lumens. Our products, and the skilled contractors who installed them, met the complex challenges of even this waterfront, open-air auto detailing facility.
